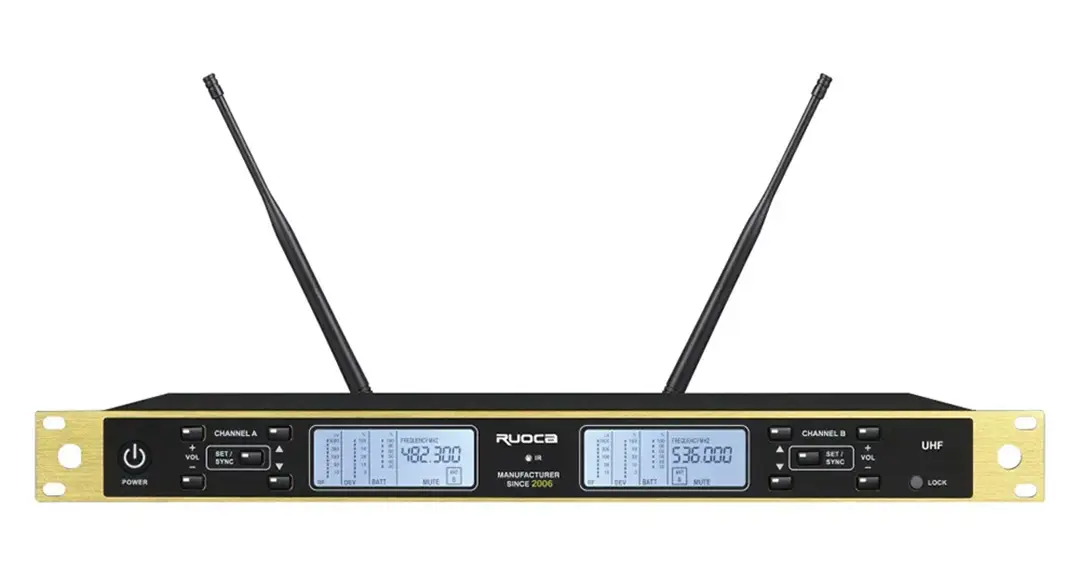

| Receiver Parameters | |
|---|---|
| Channels | Dual Channel |
| Frequency Stability | ±0.0005%, PLL Lock Loop frequency control |
| Carrier Frequency Range | UHF 460-950MHz |
| Modulation Mode | FM |
| Operating Range | 80-100M typical (in open space) |
| Oscillation | PLL synthesized |
| Sensitivity | >105dB |
| Band Width | 80MHz |
| T.H.D. | <0.4% @ 1KHz |
| Frequency Response | 45Hz~18KHz ±3dB |
| Power Supply | 100-240V AC50/60Hz, 10W |
| Transmitter Parameters | |
|---|---|
| Carrier Frequency Range | UHF 460-950MHz |
| Oscillation | PLL synthesized |
| Harmonic Radiation | <-63dBm |
| Bandwidth | 80MHz |
| Maximum Deviation | ±45KHz |

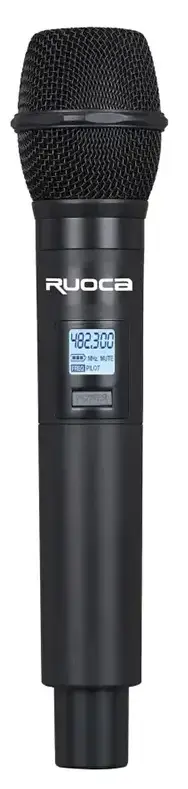

| Microphone Element (Handheld) | Dynamic, Directional |

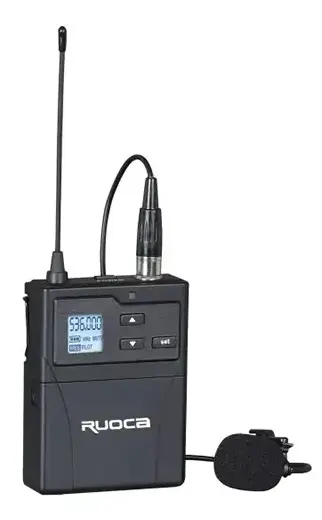

| Microphone Element (Bodypack) | Condenser, Cardioid |
| RF Power Output | 8mW/12mW (Selectable) |
| Battery | AA × 2 |
| Current Consumption | 120mA |
| Battery Life | Almost 8 Hours |

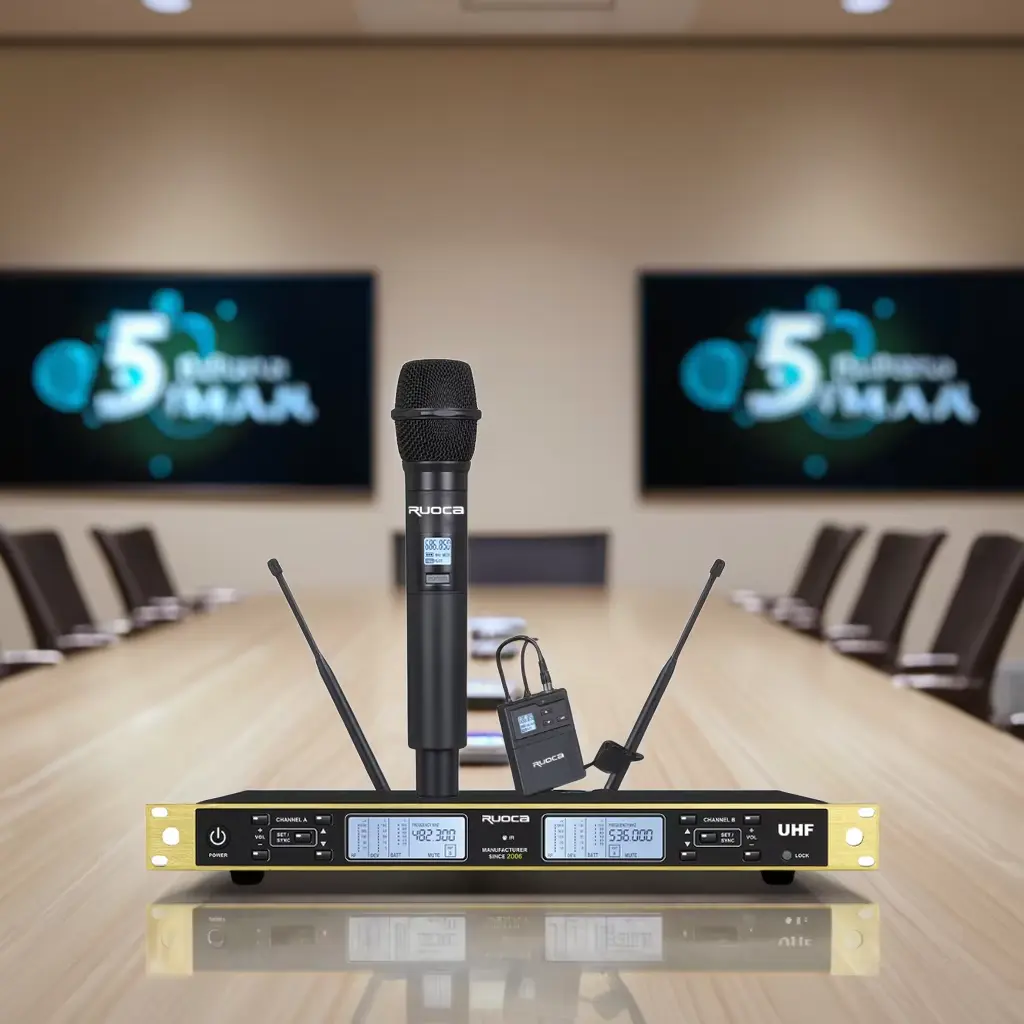

This UHF wireless microphone features a special band design to prevent frequency interference from other industries. Utilizing multi-channel digital phase locked loop PLL frequency synthesis technology, it provides up to 200 channel selections, making it more convenient to use and easy to avoid all kinds of signal interference.

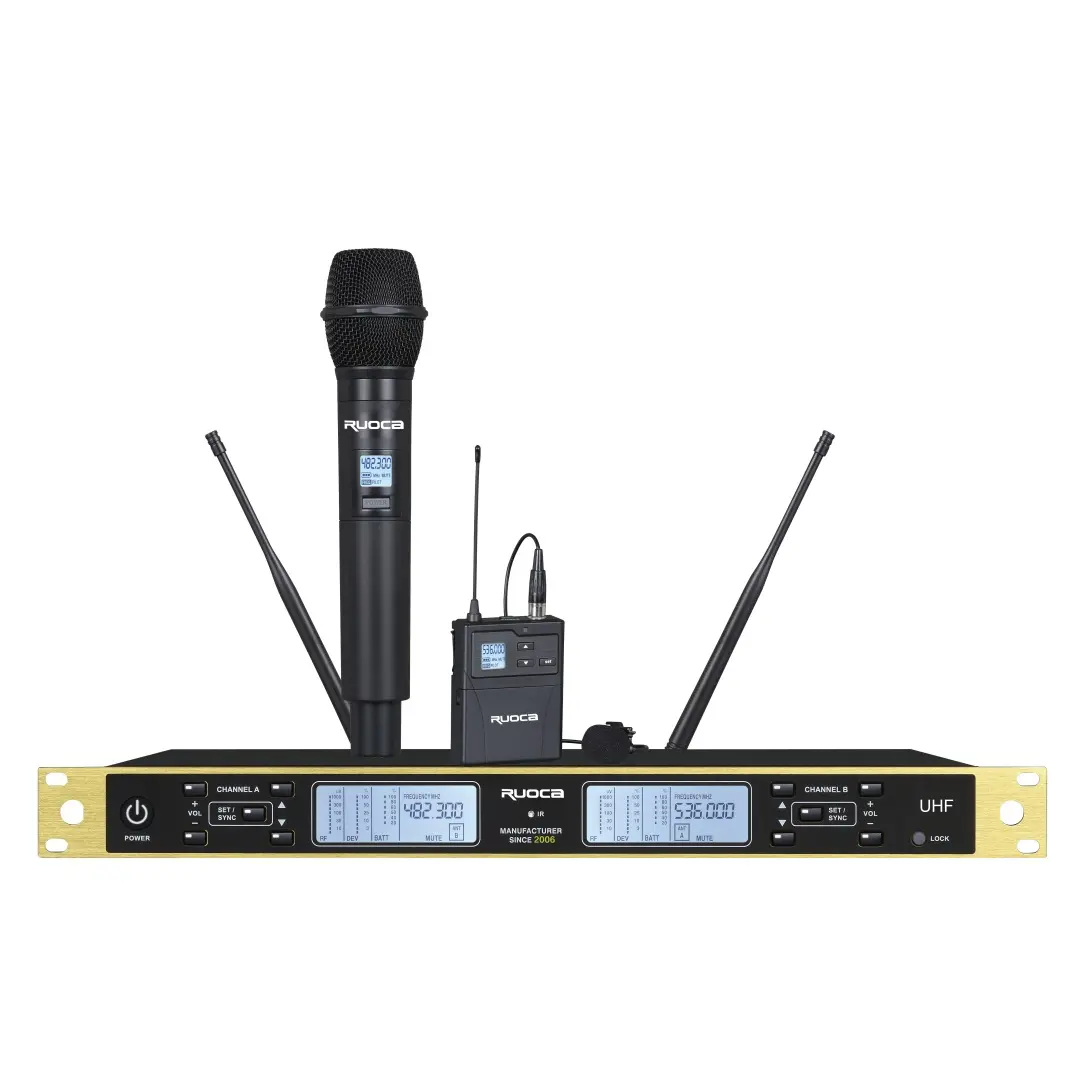

Equipped with advanced infrared synchronization, the system allows for automatic frequency matching. Even if the transmitter and receiver frequencies become chaotic, a simple button push will auto-lock the transmitter frequency and adjust the receiver accordingly. This ensures simple, quick, and error-free operation.

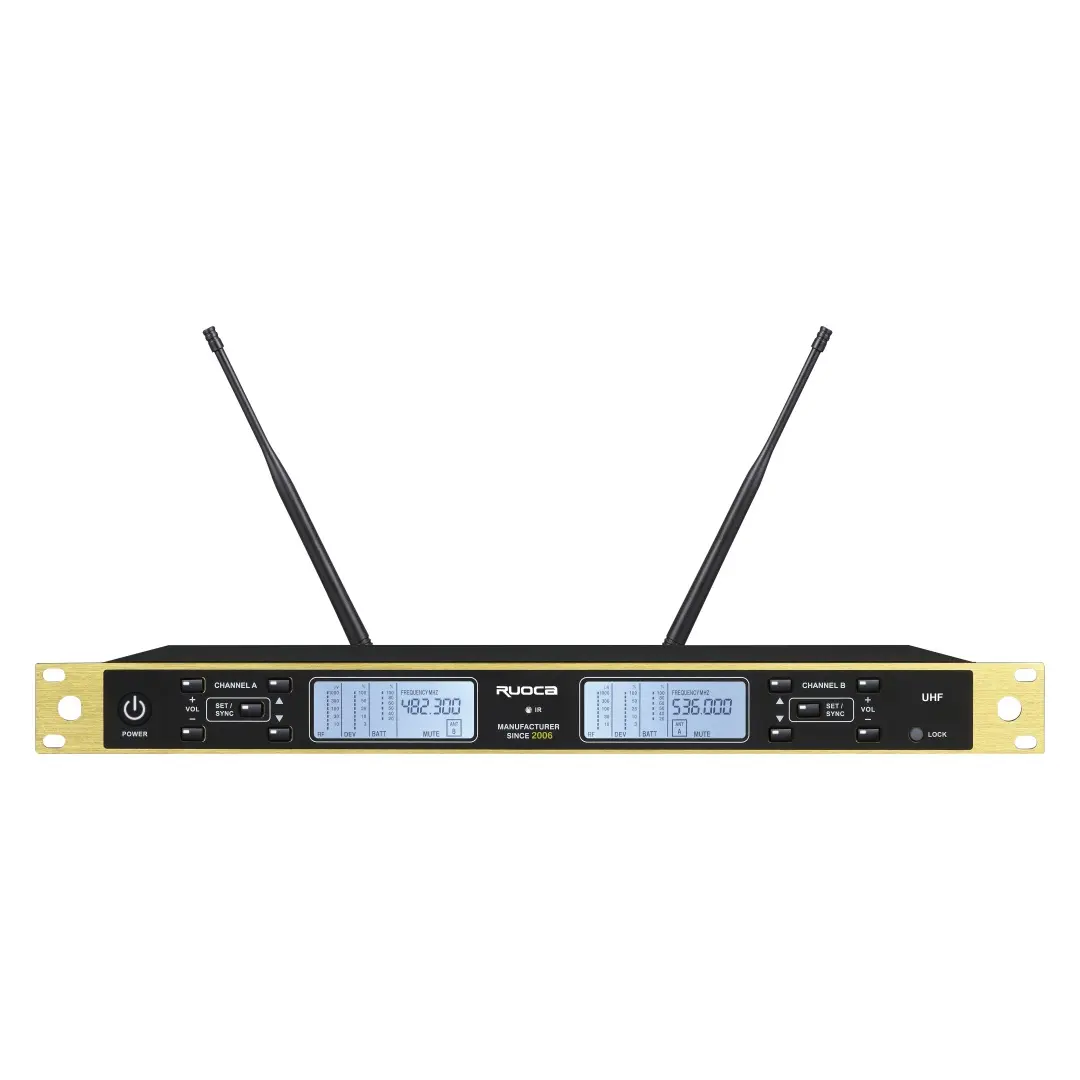

The clear LCD screen displays core parameters such as current channel, volume level, battery power, and signal strength. Users can grasp the device status at a glance. Real-time feedback for channel switching and volume adjustment ensures precise control without relying on manual guesswork.

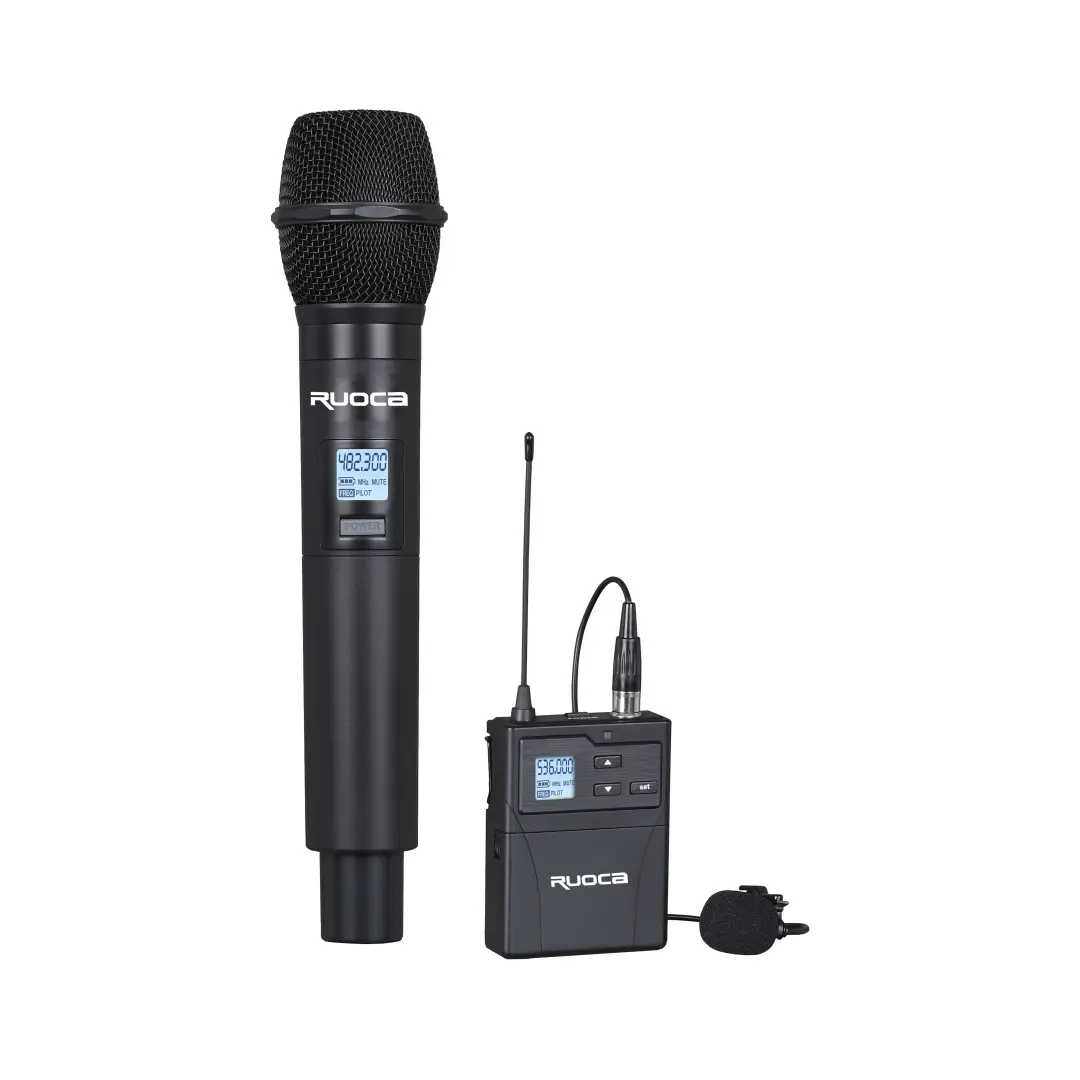

Featuring high-sensitivity cartridges, this microphone offers strong sound pickup, loud output, and efficient noise resistance. It ensures smooth, undistorted voice transmission. Ideal for outdoor performances, conference rooms, classrooms, bars, and KTV environments.
