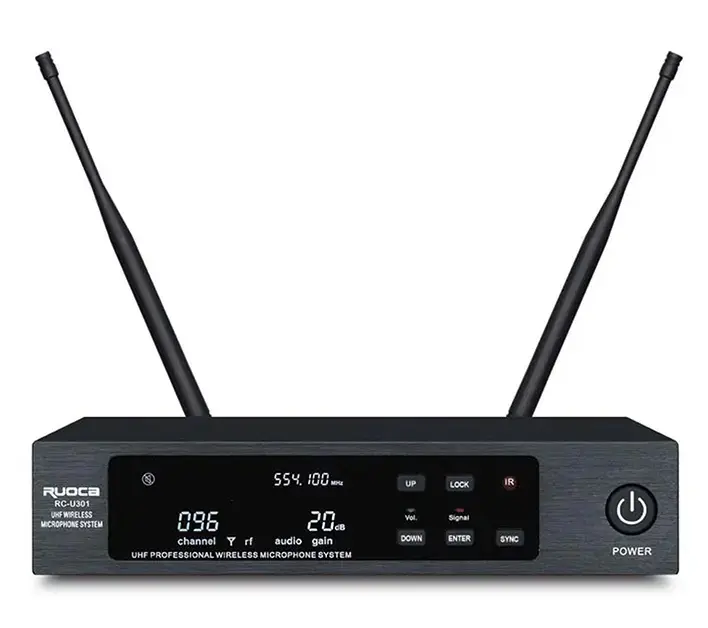

Receiver | |
| Channels | Single Channel | |
| Frequency Stability | ±0.0005%, PLL Lock Loop frequency control | |
| Carrier Frequency Range | UHF 460-950MHz | |
| Modulation Mode | FM | |
| Operating Range | 100M typical(in open space) | |
| Oscillation | PLL synthesized | |
| Sensitivity | >105dB | |
| Band Width | 80MHz | |
| T.H.D. | <0.4%@1KHz | |
| Frequency response | 45Hz~18KHz±3dB | |
| Power Supply | 100-240V AC50/60Hz,10W | |
|

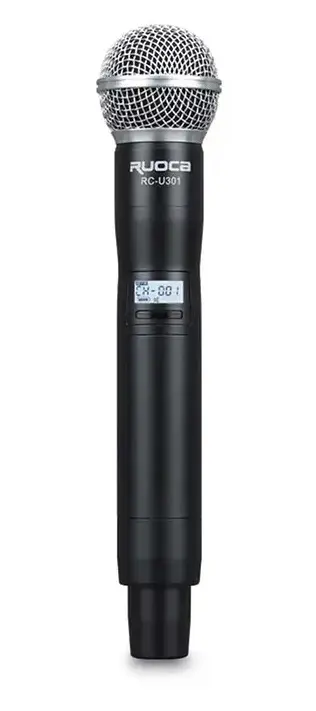

Transmitter | |
| Carrier Frequency Range | UHF 460-950MHz | |
| Oscillation | PLL synthesized | |
| Harmonic radiation | <-63dBm | |
| Bandwidth | 80MHz | |
| Maximum Deviation | ±45KHz | |
| Microphone Element | Dynamic, Directional | |
| RF Power Output | 8mW/12mW(Selectable) | |
| Battery | AA×2 | |
| Current Consumption | 120mA | |
| Battery Life | Almost 8 Hours | |

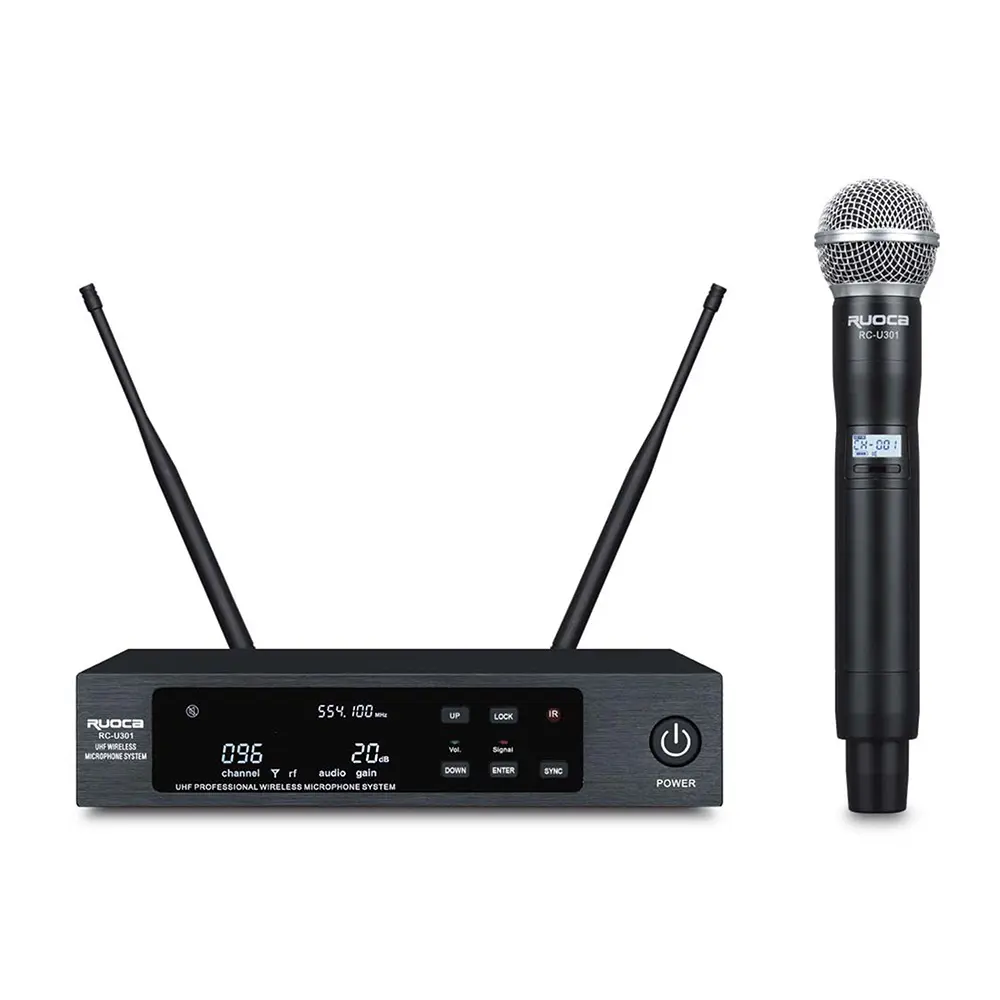

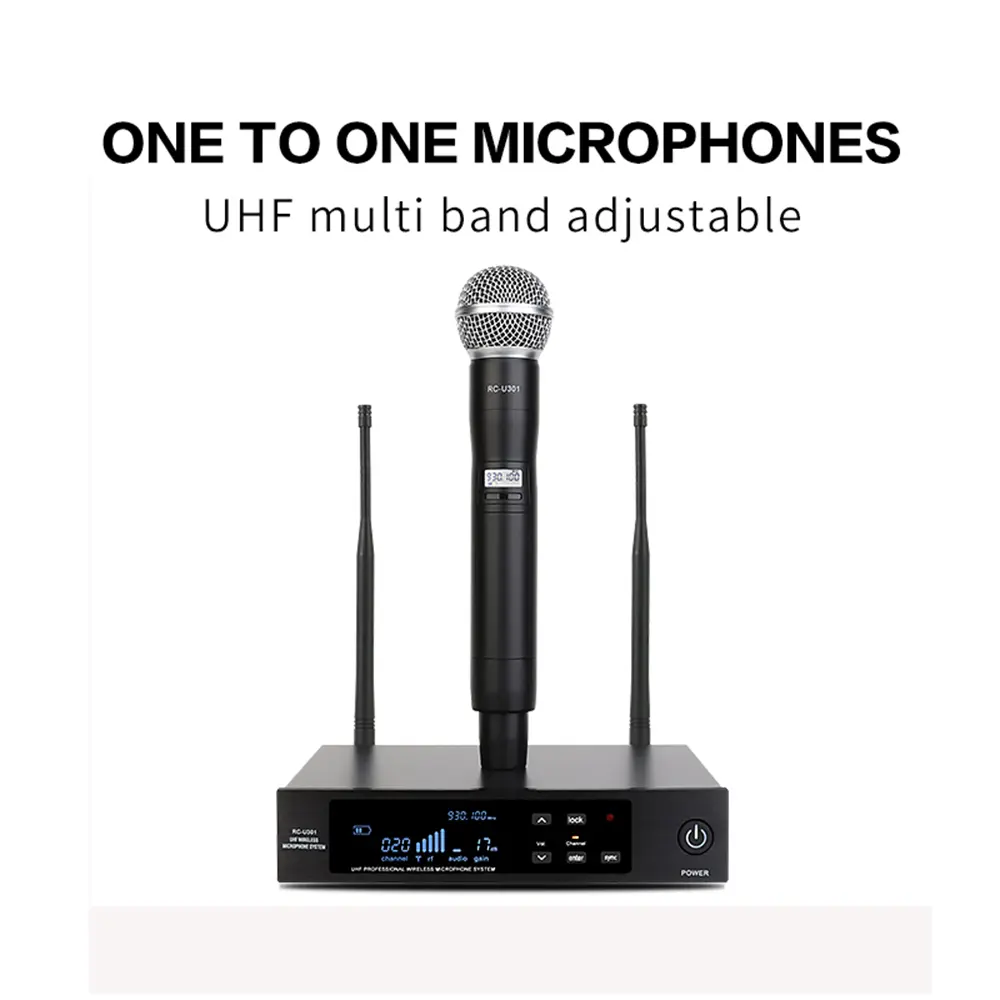

This UHF wireless microphone system adopts advanced PLL (Phase Locked Loop) frequency synthesis technology, providing 100 adjustable frequency points, covering a wide frequency range of 460-950MHz, supporting dual channel reception. The system has excellent anti-interference ability through antenna grading design and "noise locking" function, ensuring signal purity and stability.
One click [IR] infrared synchronization function allows you to automatically synchronize the receiver frequency to the transmitter. This eliminates tedious manual frequency modulation and ensures efficient, accurate operation during setup.
Featuring ± 0.0005% ultra-high frequency accuracy combined with PLL phase-locked loop control, this system eliminates frequency deviation problems. With a maximum frequency deviation of ± 45KHz, it ensures no frequency interruption or sound delay.
In open environments, the transmission distance reaches up to 100 meters. The dynamic directional microphone unit and FM modulation provide a frequency response of 45Hz~18KHz (± 3dB) with T.H.D. <0.4%, ensuring clear and delicate vocal reproduction.
The system typically operates within a range of 100 meters in open spaces, making it suitable for large venues and outdoor events.
The system covers a wide carrier frequency range from UHF 460MHz to 950MHz with 80MHz bandwidth.
The system features an intelligent [IR] infrared synchronization function. With one click, the receiver frequency automatically syncs to the transmitter.
The transmitter uses 2 AA batteries, providing approximately 8 hours of continuous operation depending on usage conditions.

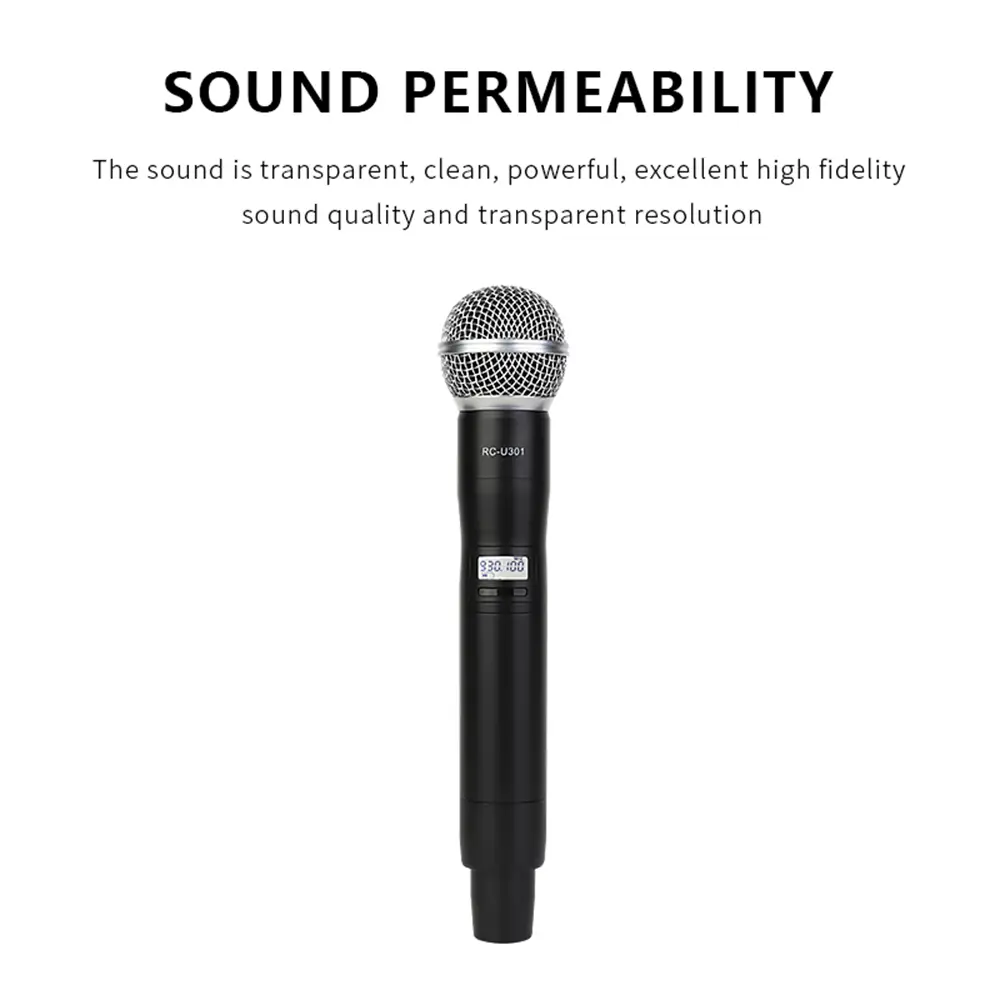

Yes, it uses a dynamic directional microphone element with a frequency response of 45Hz~18KHz and low harmonic distortion (<0.4%), ensuring high-fidelity sound.
Absolutely. With PLL Lock Loop frequency control and ±0.0005% frequency stability, it effectively prevents frequency deviation and interference.
