Ruoca Audio
Ruoca Audio

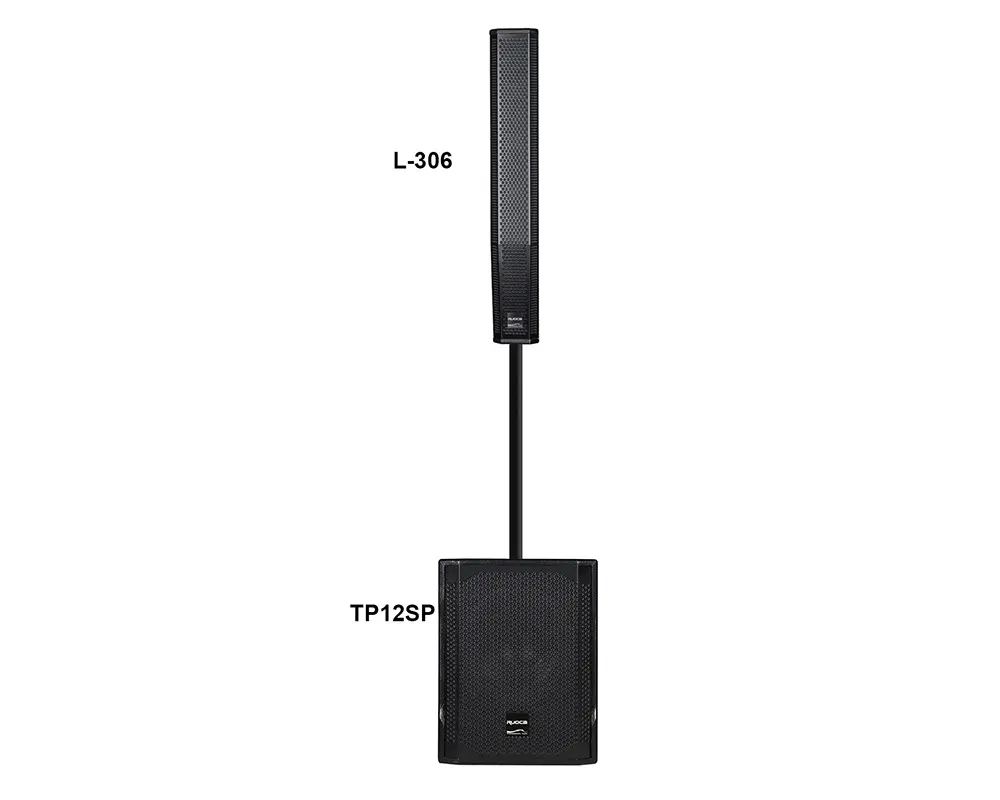

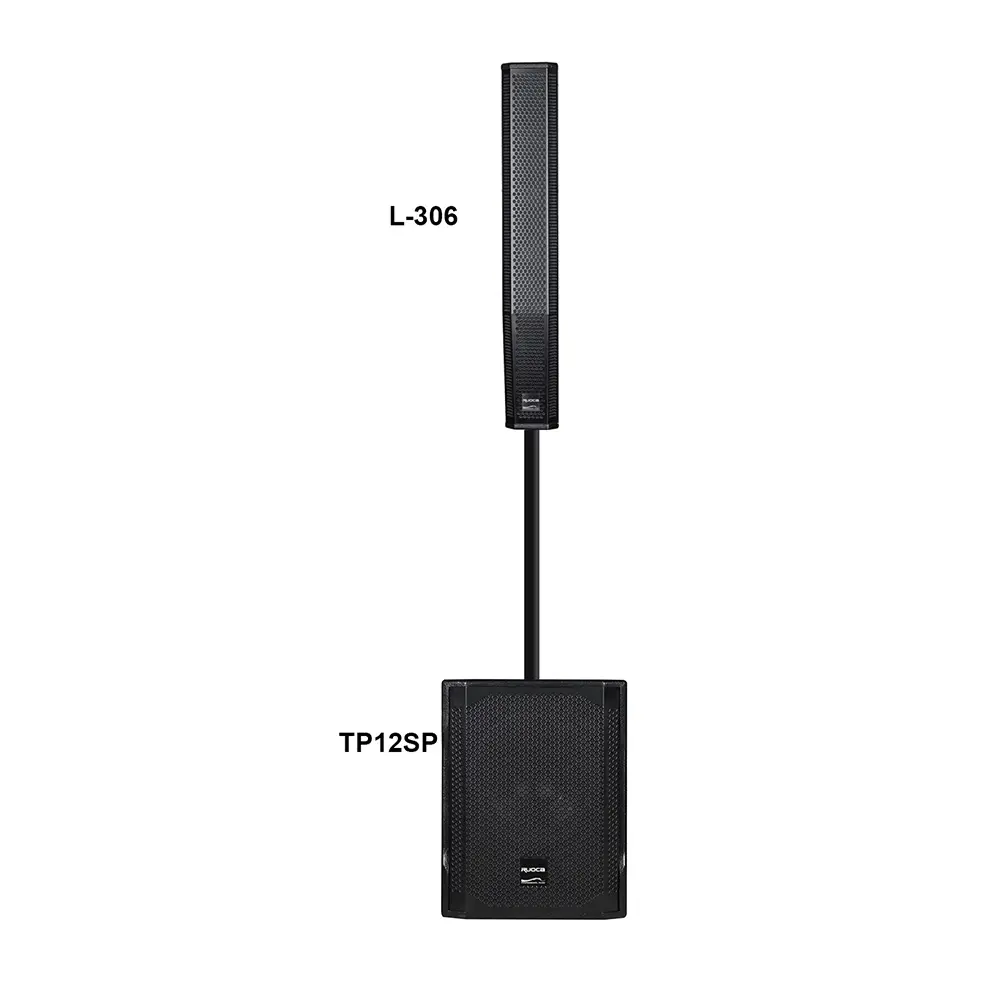

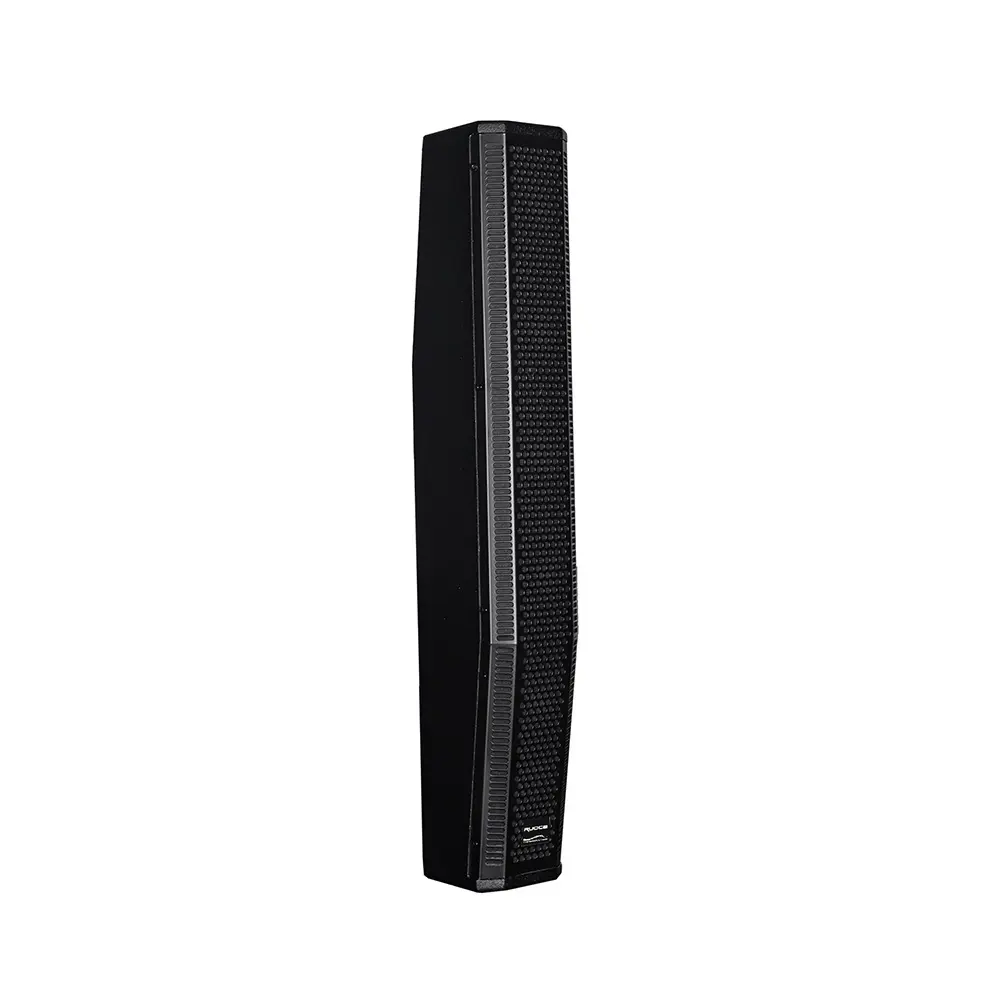

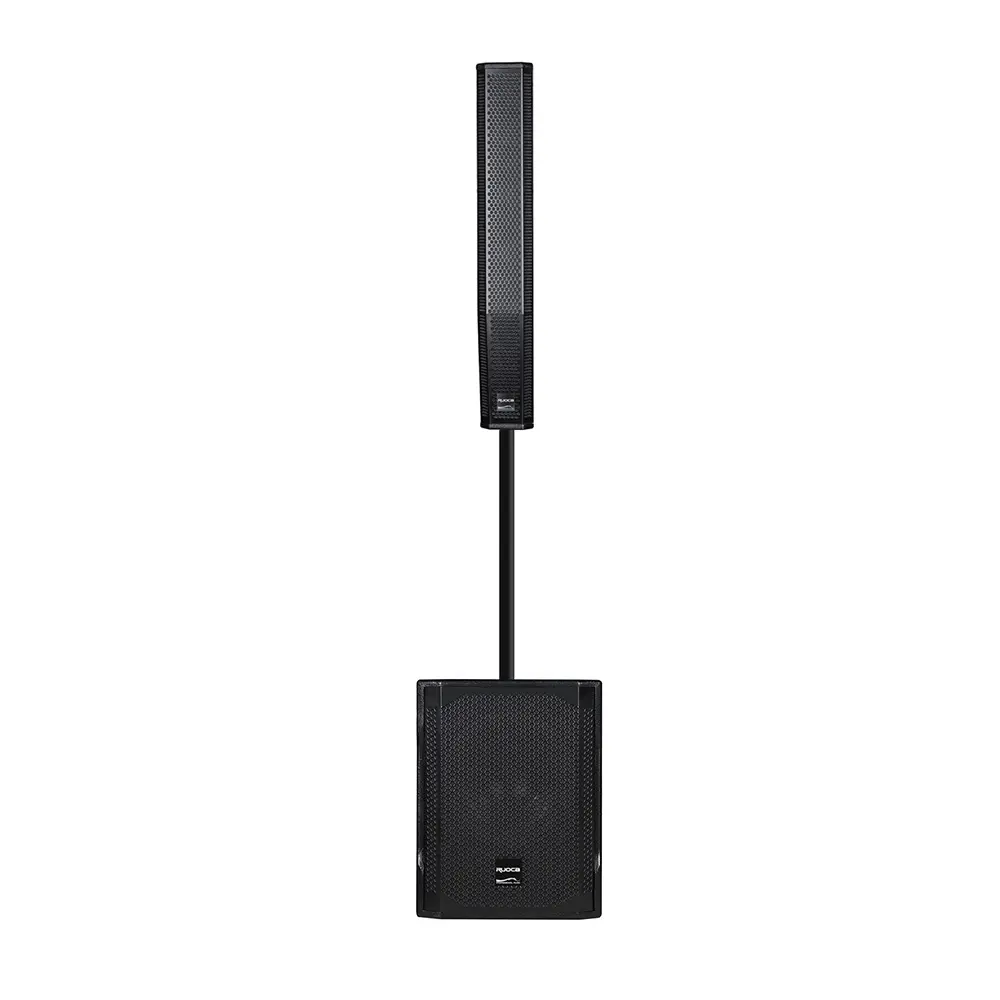

| Model number | L-306 |
| Frequency response | 200Hz-18KHz(±5dB) |
| Components | MF 6×3"(25mm Voice coil neodymium unit)，HF 1×1"(25mm Voice coil) |
| Power | 250W(RMS)/500W(Program) |
| Sensitivity(1W/1m) | 97dB |
| Maximum SPL | 126dB |
| Nominal indedance | 8 Ω |
| Connection | 2*NL4 Speakon |
| Suspension Hardware | one base support |
| Enclosure Material | 12mm plywood, blacksand Painting |
| Dimension(W*H*D) | 110×704×135mm |
| Suitable for | Performance/Hotel/Conference Multifunctional room/Small Bar |

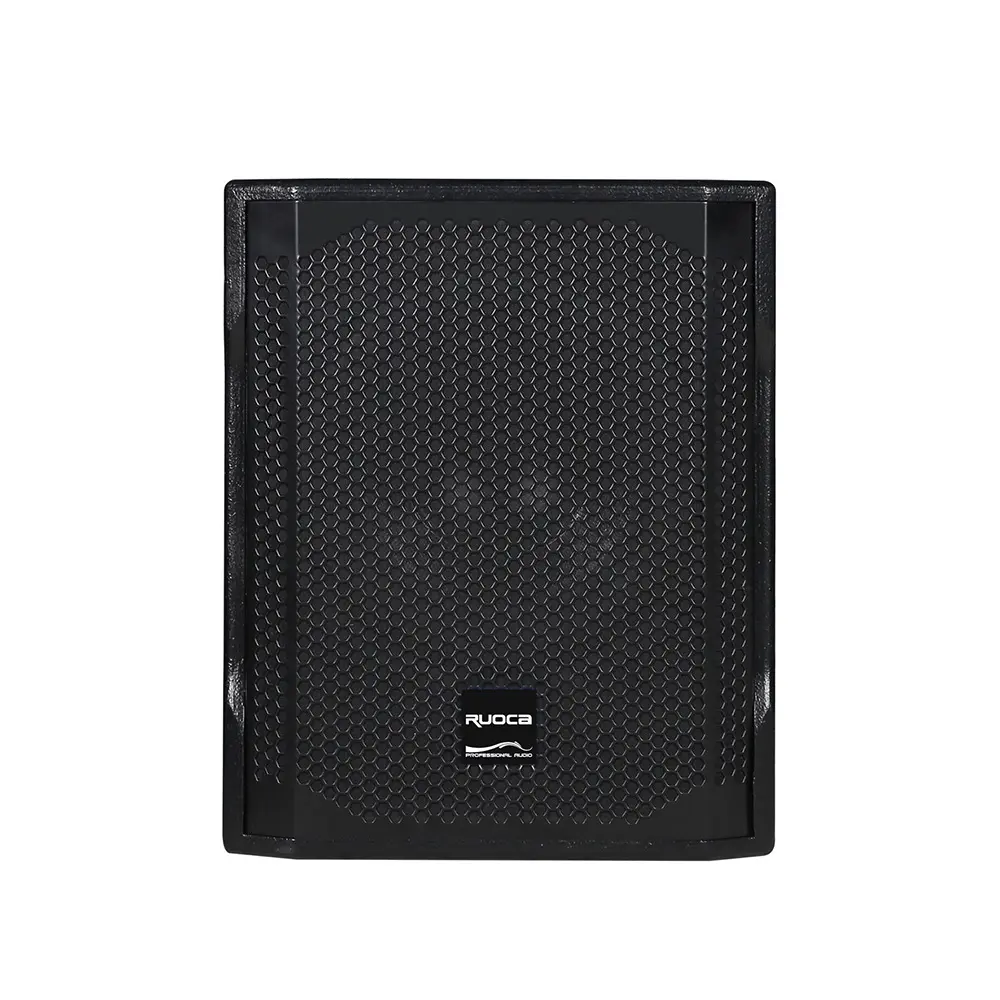

| Model number | TB-12SP |
| Frequency response | 40Hz-500KHz(±5dB) |
| Components | LF 1*12"（65mm Voice coil） |
| Power | 300W(RMS)/600W(Program) |
| Sensitivity(1W/1m) | 95dB |
| Maximum SPL | 128dB |
| Nominal indedance | 8 Ω |
| Connection | 2*NL4 Speakon |
| Suspension Hardware | one base support |
| Enclosure Material | 15mm plywood, Environmental protection ware-resistant black sand Painting |
| Dimenion(W*H*D) | 370*462*470mm |
| Suitable for | Performance/Hotel/Conference Multifunctional room/Small Bar |
| Built in Amplifier | 4ohms 1300W with DSP processing |
12-inch large-diameter woofer provides a wide dynamic range. The 3-inch treble compression driver in the column speaker offers concentrated directivity. The carefully debugged crossover network ensures vocals stand out with a high degree of restoration.
The 25mm-core neodymium unit with high-frequency sound field has strong depth and penetration. The large magnetic low-frequency impact easily creates a three-dimensional sense of space and clear, delicate sound quality with distinct layers.
The 12-inch subwoofer is equipped with a powerful large-magnetic steel subwoofer. It features strong driving force and high energy density, ensuring the instantaneous dynamic bass impact is strong and the tone transition is smooth and fast.
Professional DSP reverberation audio processing system integrates powerful digital processing, making the sound quality clearer, more real, rounder and fuller. Suitable for multi-angle sound field coverage in various occasions.
Flexible installation system, multi-angle adjustment of sound field coverage, suitable for use in various occasions.
