Ruoca Audio
Ruoca Audio

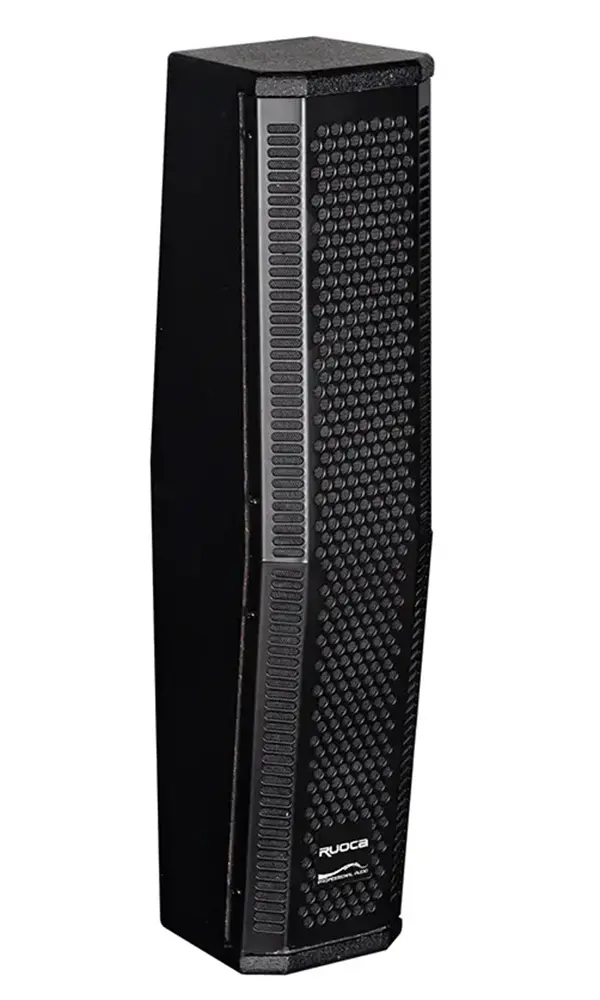

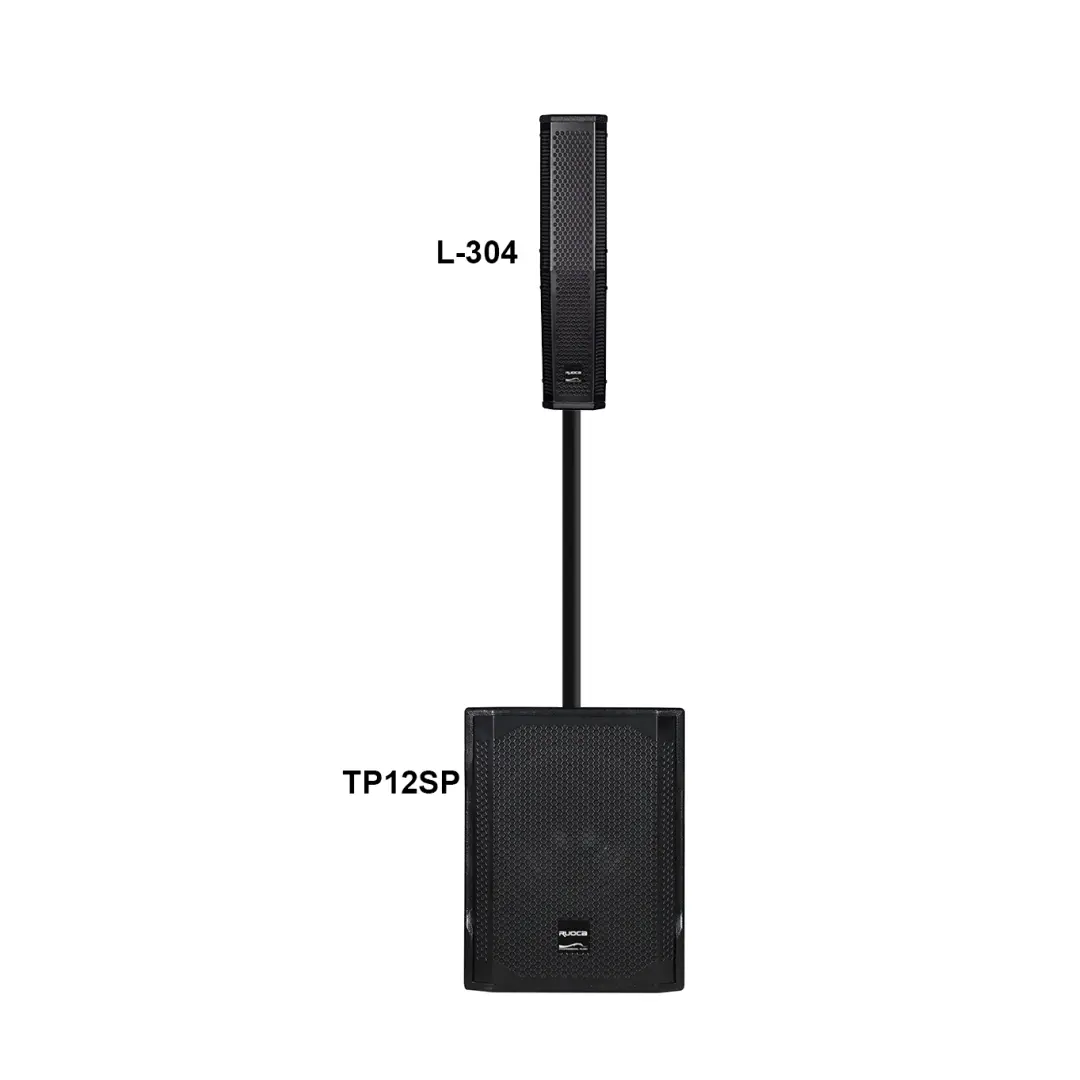

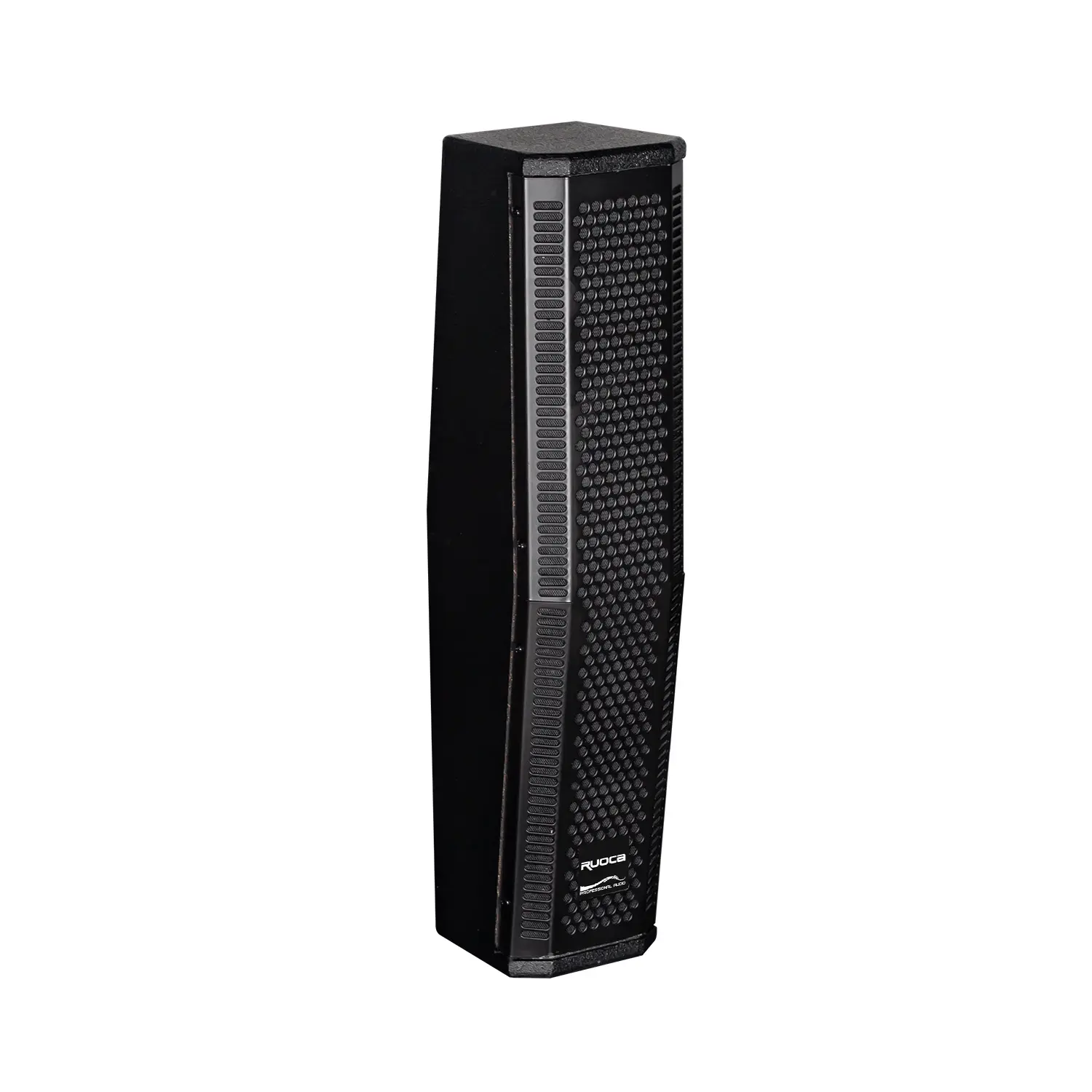

| Model number | L-304 |
| Frequency response | 200Hz-16KHz(±5dB) |
| Components | MF 4*3”（25mm voice coil neodymium unit) ; HF 1*25mm voice coil |
| Power | 150W(RMS)/300W(Program) |
| Sensitivity（1W/1m） | 97dB |
| Maximum SPL | 125dB |
| Nominal impedance | 8 Ω |
| Connection | 2*NL4 Speakon |
| Suspension Hardware | one base support |
| Enclosure Material | 12mm plywood, Environmental protection ware-resistant black sand Painting |
| Dimension(W*H*D) | 470*104*135mm |

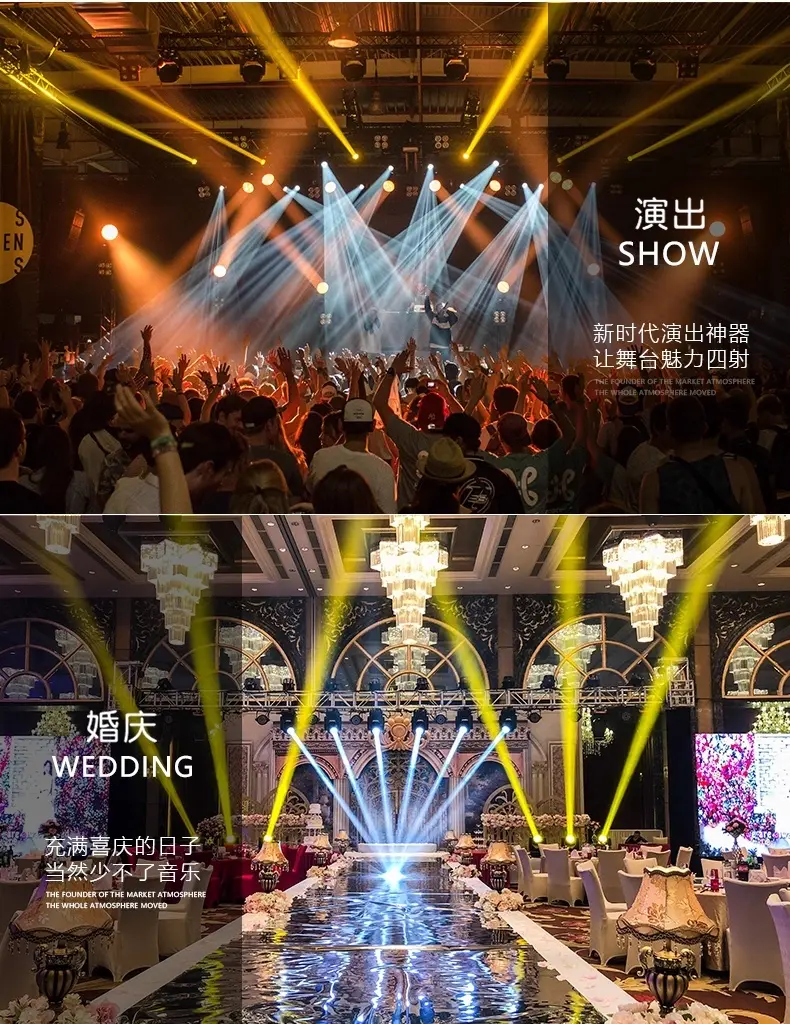

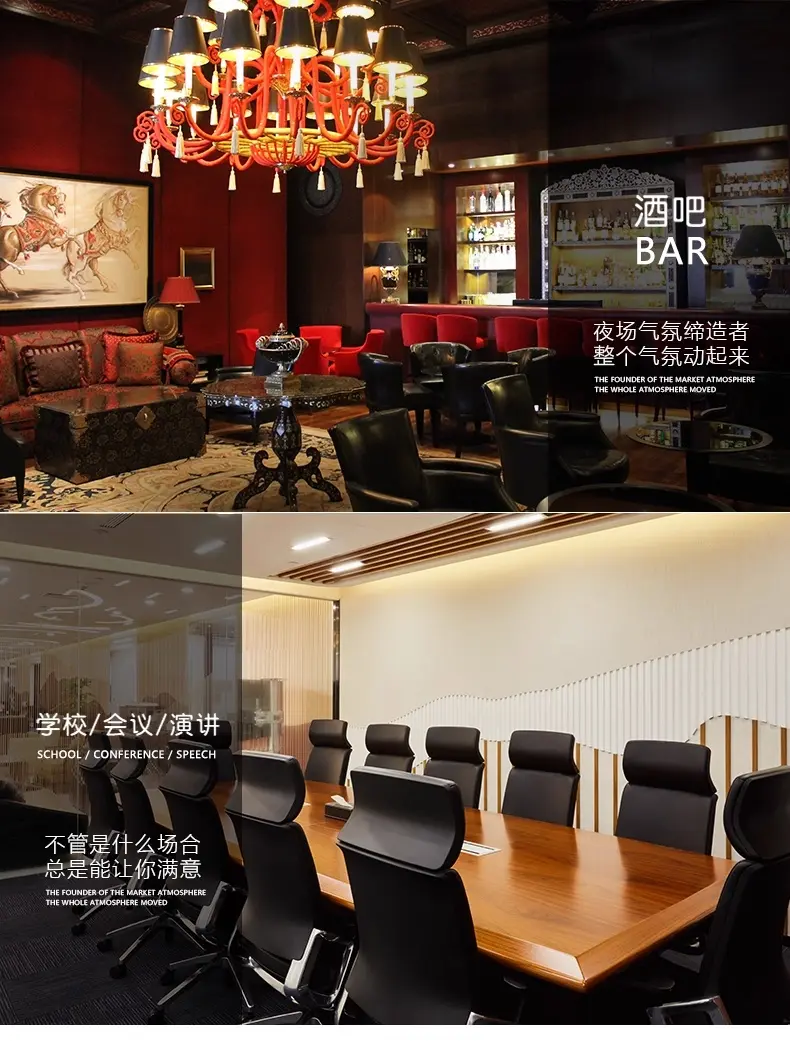

| Suitable for | Performance/Hotel/Conference Multifunctional room/Small Bar |

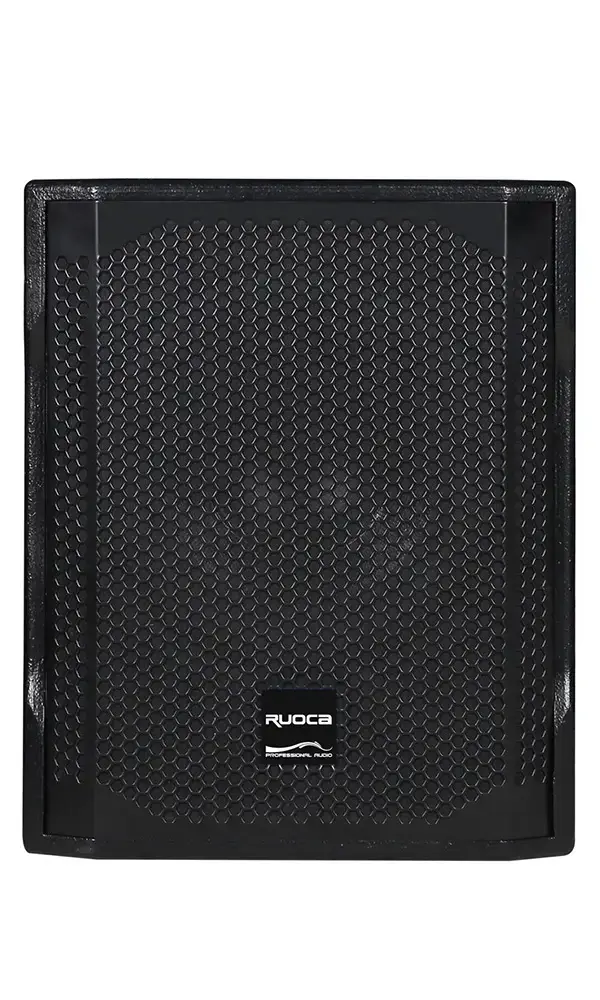

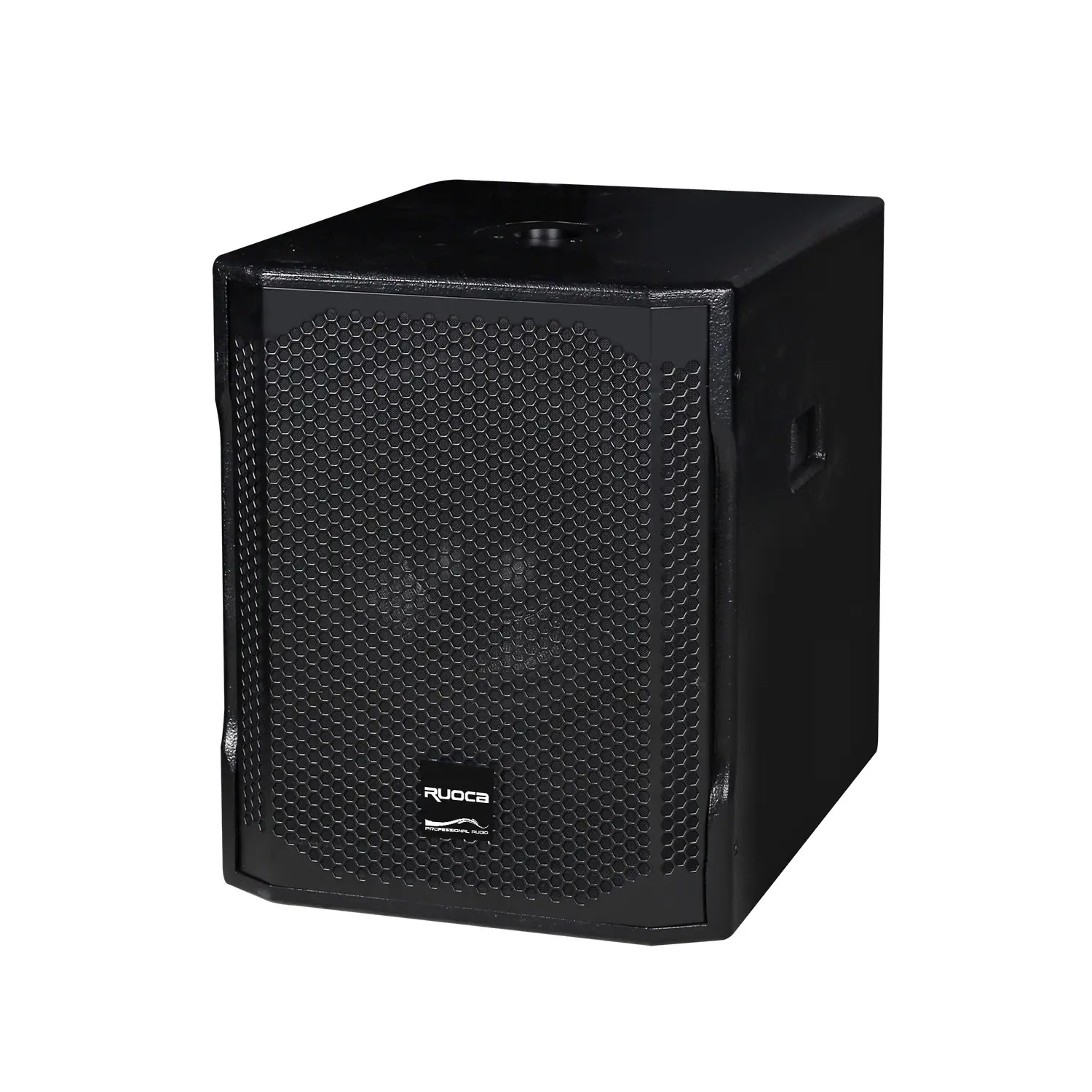

| Model number | TB-12SP |
| Frequency response | 40Hz-500KHz(±5dB) |
| Components | LF 1*12"(65mm Voice coil) |
| Power | 300W(RMS)/600W(Program) |
| Sensitivity（1W/1m） | 95dB |
| Maximum SPL | 128dB |
| Nominal impedance | 8 Ω |
| Connection | 2*NL4 Speakon |
| Suspension Hardware | one base support |
| Enclosure Material | 15mm plywood, Environmental protection ware-resistant black sand Painting |
| Dimension(W*H*D) | 370*462*470mm |

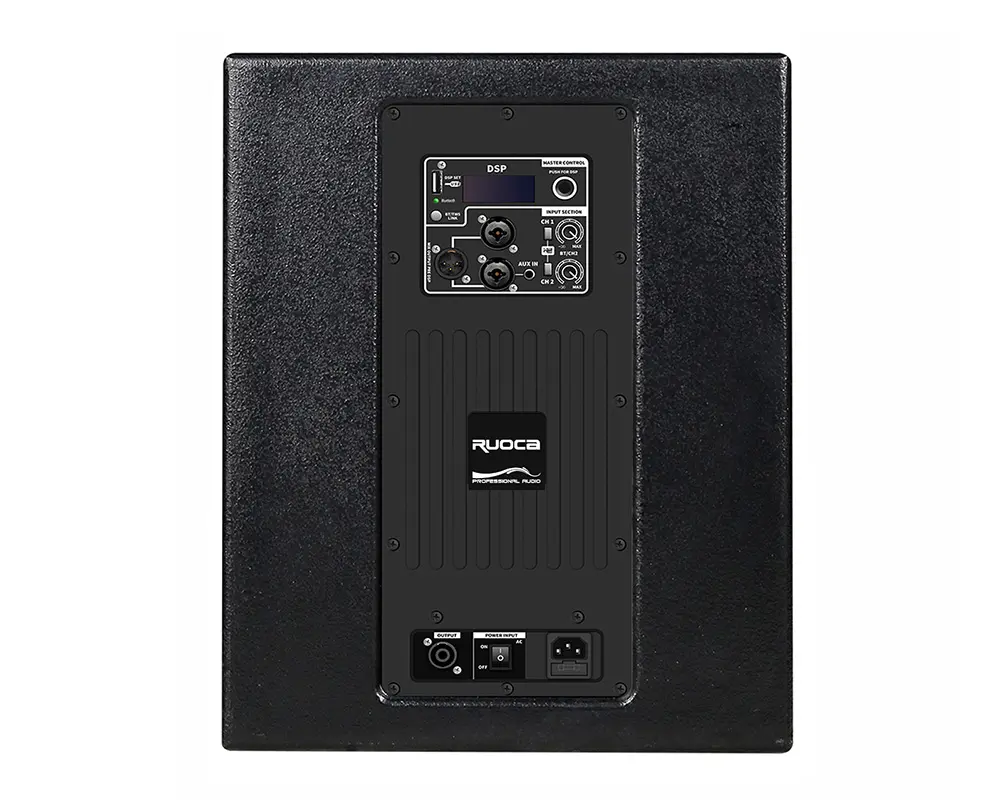

| Built in Amplifier | 4ohms 1300W with DSP processing |
| Suitable for | Performance/Hotel/Conference Multifunctional room/Small Bar |
12-inch large-diameter woofer, wide dynamic range, 3-inch treble compression driver in column speaker, concentrated directivity; carefully debugged crossover network, vocals stand out and have high degree of restoration.

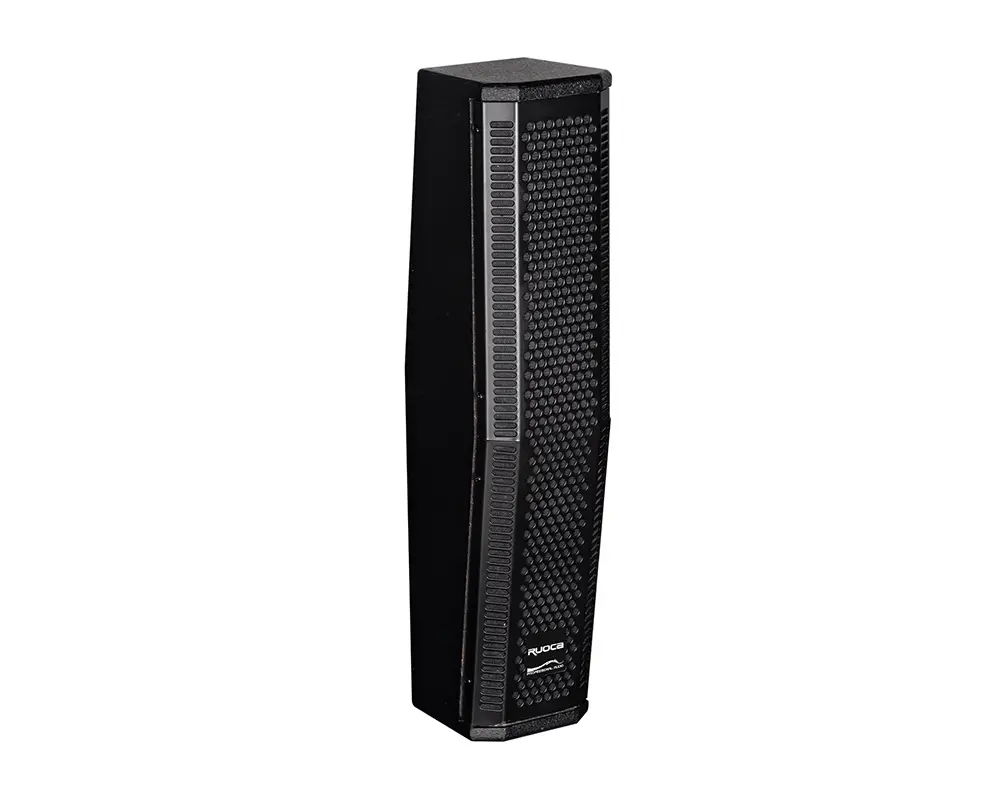

The 25mm-core neodymium unit with high-frequency sound field has a strong depth and penetration, and the large magnetic low-frequency impact is sufficient, which can easily create a three-dimensional sense of space and a clear and delicate sound quality with distinct layers.

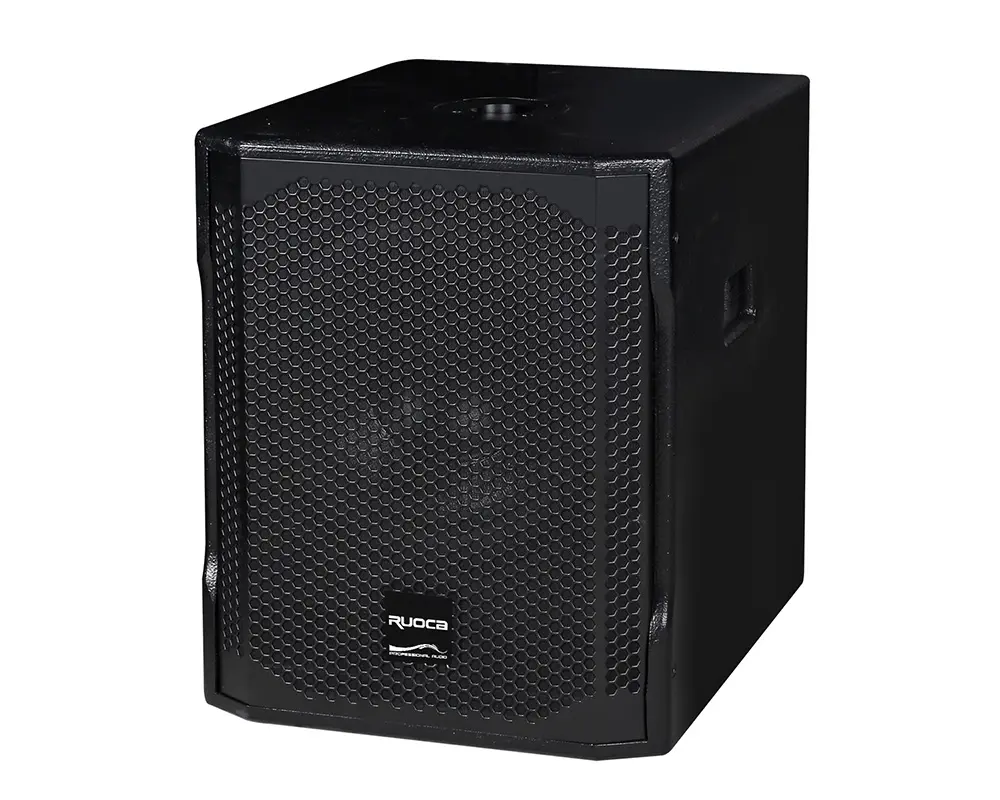

The 12-inch subwoofer is equipped with a powerful large-magnetic steel subwoofer, which has strong driving force and high energy density, and the instantaneous dynamic bass impact is strong and the tone transition is smooth and fast.
Professional DSP reverberation audio processing system, integrating powerful DSP digital processing and reverberation, making the sound quality clearer, more real, rounder and fuller.

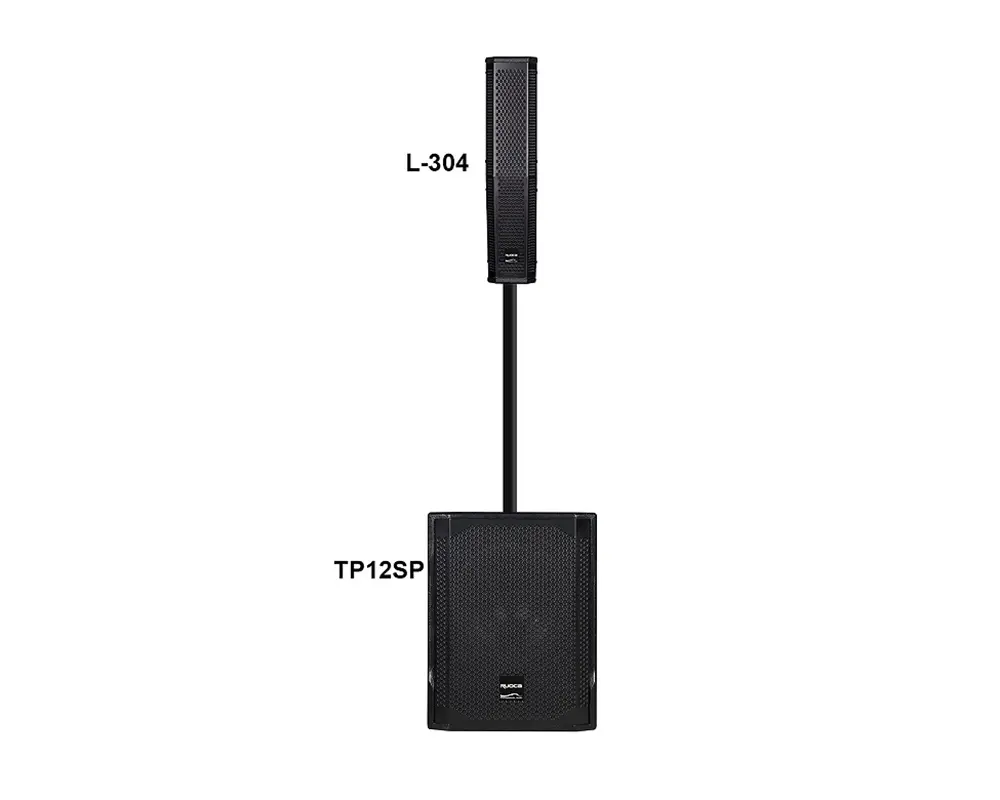

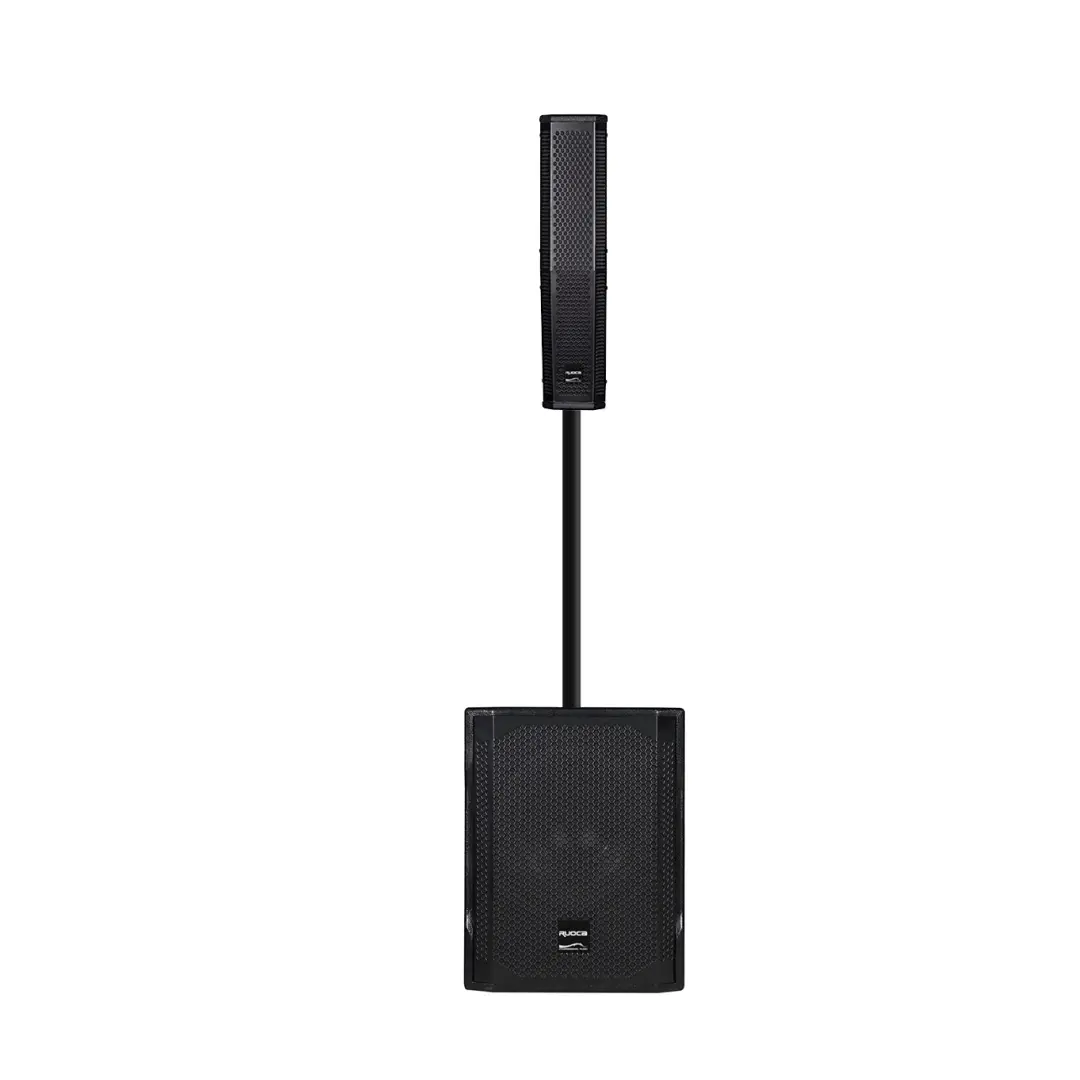

Flexible installation system, multi-angle adjustment of sound field coverage, suitable for use in various occasions.
